Azure Node Steps (Commercial)

Getting Started

Follow the steps outlined in the Azure Plugins Overview to configure authentication for Azure Job steps.
Credentials can be configured on a per Job Step basis, Project basis, or for the entire Runbook Automation system.

Rundeck OSS Installations

For Rundeck OSS installations, use the properties listed below to configure credentials at the Project or System levels.

Client ID

The client ID for the application with access to the tenant to view VMs from.

• Project setting: project.azure.clientId
• Framework Setting: azure.clientId

Tenant ID

The tenant (organization) in which the VMs live

• Project setting: project.azure.tenantId
• Framework Setting: azure.tenantId

Subscription ID

The subscription ID for the application with access to the tenant to view VMs from.

• Project setting: project.azure.subscriptionId
• Framework Setting: azure.subscriptionId

Azure Access Key

The access key for the Azure application that contains access to the proper VMs.

• Project setting: project.azure.keyPath
• Framework Setting: azure.keyPath

Tips

It is important to configure the azure resource model plugin before using these steps: Azure Resource Model

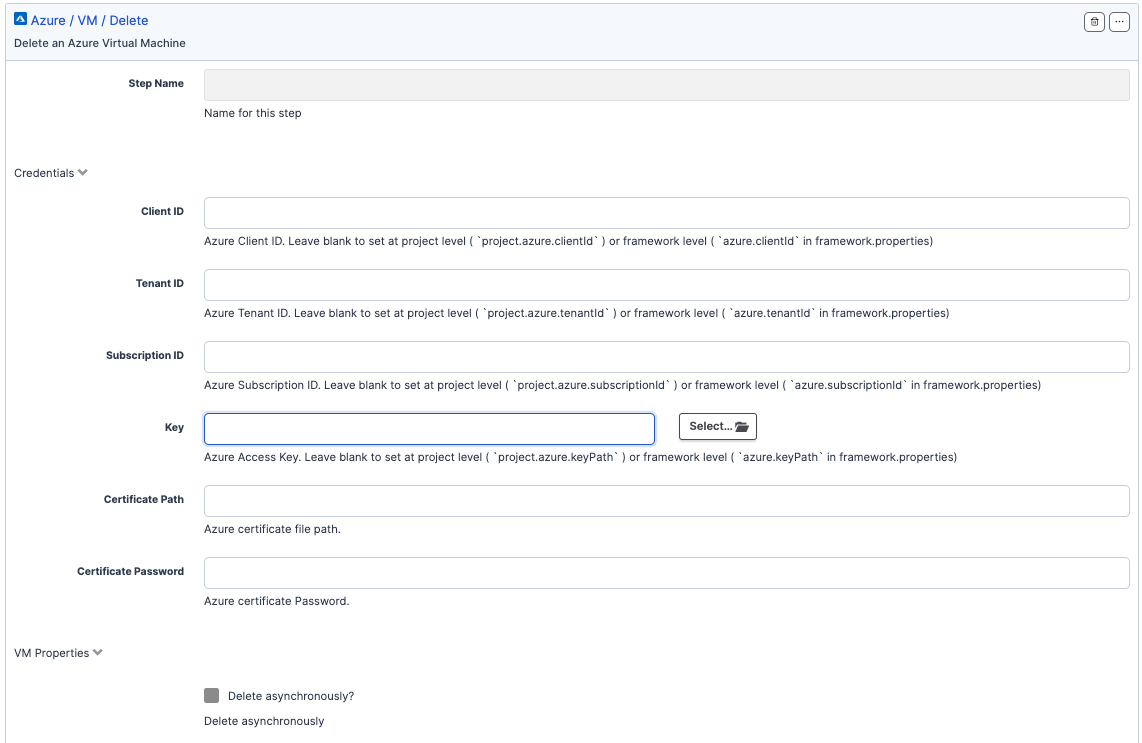

Azure / Node / Delete

Azure - Delete Node

• Async
  : Should be set to true if the vm should be deleted asynchronously.

Caution

Be very careful when using this step. It would be possible to remove a lot of instances by mistake if the node filter is too broad.

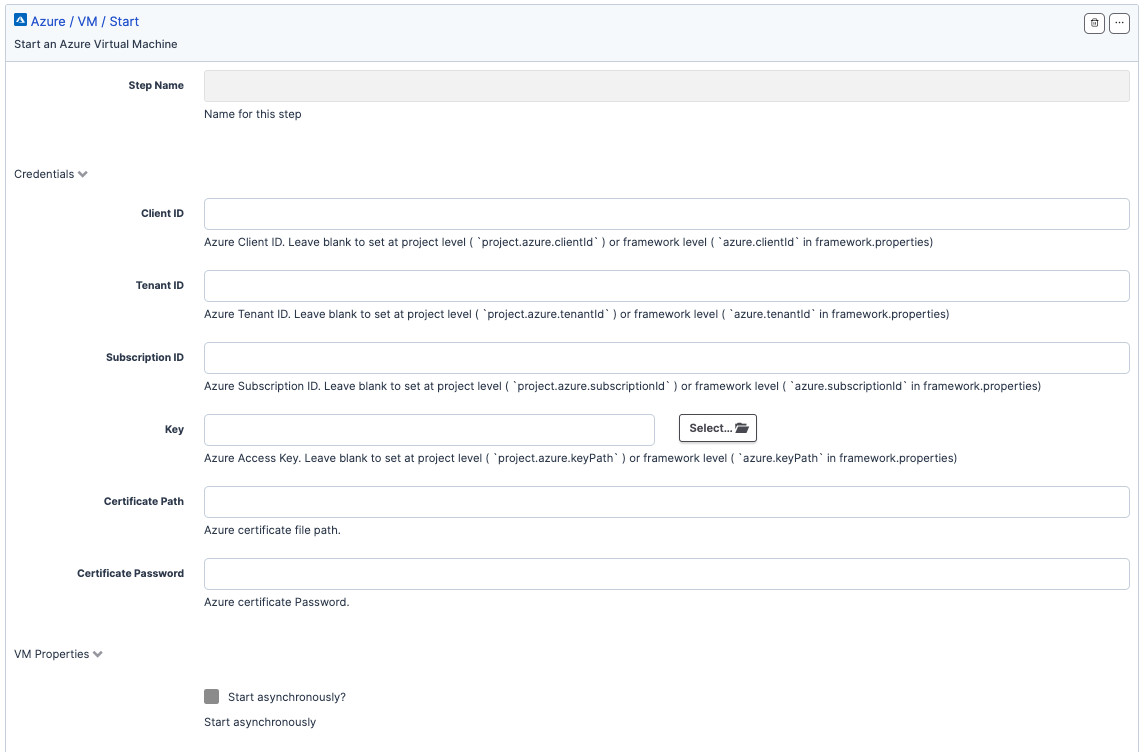

Azure / Node / Start

Azure - Delete Node

• Async
  : Should be set to true if the vm should be started asynchronously.

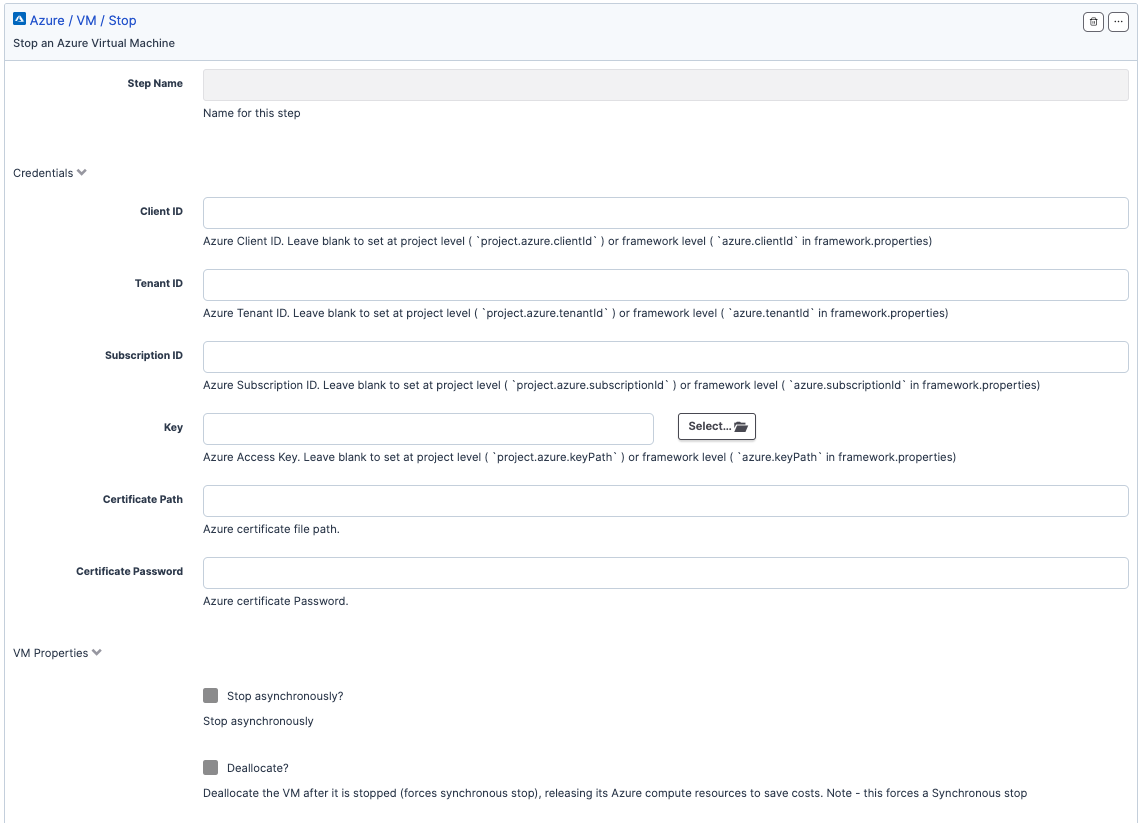

Azure / Node / Stop

Azure - Delete Node

• Async
  : Should be set to true if the vm should be stopped asynchronously.

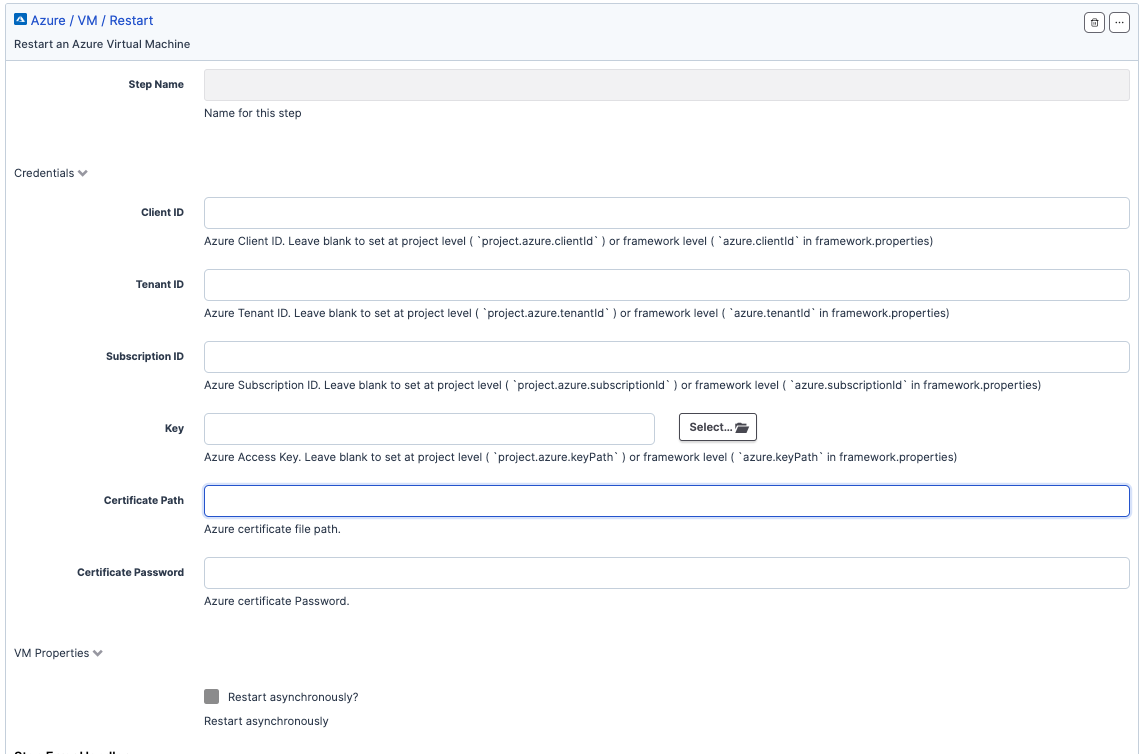

Azure / Node / Restart

Azure - Delete Node

• Async
  : Should be set to true if the vm should be restart asynchronously.

Azure / Node / Capture

Azure - Delete Node

• Async
  : Should be set to true if the vm should be captured asynchronously.

• containerName
  : destination container name to store the captured VHD

• vhdPrefix
  : the prefix for the VHD holding captured image.

• overwriteVhd
  : whether to overwrites destination VHD if it exists. If set to true, it will be overwritten.
