Creating Runners

The Enterprise Runner can be used to dispatch automation to remote environments and to give teams flexibility with their automation with Projects.

To learn more about the Runner architecture and use-cases, see the Runner Overview.

Prerequisites

Before creating a Runner, ensure that you have read the prerequisites section of the Runner Overview.

Creating Runners from System Level

Creating Runners at the System level provides the flexibility of associating the Runner with multiple Projects.

To create a Runner through at the System level:

1. Navigate to the System menu.
2. Click Runner Management.
3. Click Create Runner.
4. Give the Runner a Name and a Description.
5. Define Tags for the Runner so that it can be selected for use within Jobs.

6. Click Next.
7. In the Project Association step, select the Projects that can make use of this Runner.

8. On the Confirmation Screen click Download. This downloads the Runner .jar file.
9. Click Close and Complete.

On the subsequent screen, the new Runner will be listed along with any other Runners that have been created:

Permissions

To create a Runner at the System level, users will need the following ACL permissions:

by:
  group: my-user-group-name
description: Allow creating of Runners at the System level
for:
  runner:
  - allow:
    - create
context:
  application: rundeck

---
by:
  group: my-user-group-name
description: Allow "write" access within Runner management at the System level
for:
  resource:
  - allow:
    - admin
    equals:
      kind: runner
context:
  application: rundeck
---
by:
  group: my-user-group-name
description: Allow creation of apitokens (general)
for:
  apitoken:
  - allow:
    - create
context:
  application: rundeck
---
by:
  group: my-user-group-name
description: Restrict apitoken creation to only generate_service_token to be used for Runners
for:
  resource:
  - allow:
    - generate_service_token
    equals:
      kind: apitoken
context:
  application: rundeck

• Change my-user-group-name in the above ACL policy to the name of the user group that needs to have these permissions.

Error Without API Permissions

If the user does not have the necessary API permissions, the following error will be displayed when attempting to create a Runner:

Error: Failed to create runner due to server side error: Unauthorized: generate API token

To resolve this error, ensure that the user has the necessary API permissions.

Creating Runners within a Project

Early Access Feature

The ability to manage Runners at the Project level is an early access feature.
To gain access, please submit this form and someone from our team will reach out promptly.

Runners created within a project are associated with that project only. This means that users within other projects will not be able to use this Runner for their automation tasks.

Changing Runners from Single to Multi Project Association

A Runner that is created within a project will not be visible to users within other projects.
However, a user at the System level can change the association of a Runner from a single project to multiple projects.
When this happens, then the Runner will be visible to users within the other projects.

To create a Runner within a Project:

1. Navigate into the specific project.
2. Click Runner Management.
3. Click Create Runner.
4. Give the Runner a Name and a Description.
5. Define Tags for the Runner so that it can be selected for use within Jobs.

6. Click Next.
7. On the Confirmation Screen click Download. This downloads the Runner .jar file.
8. Click Close and Complete.

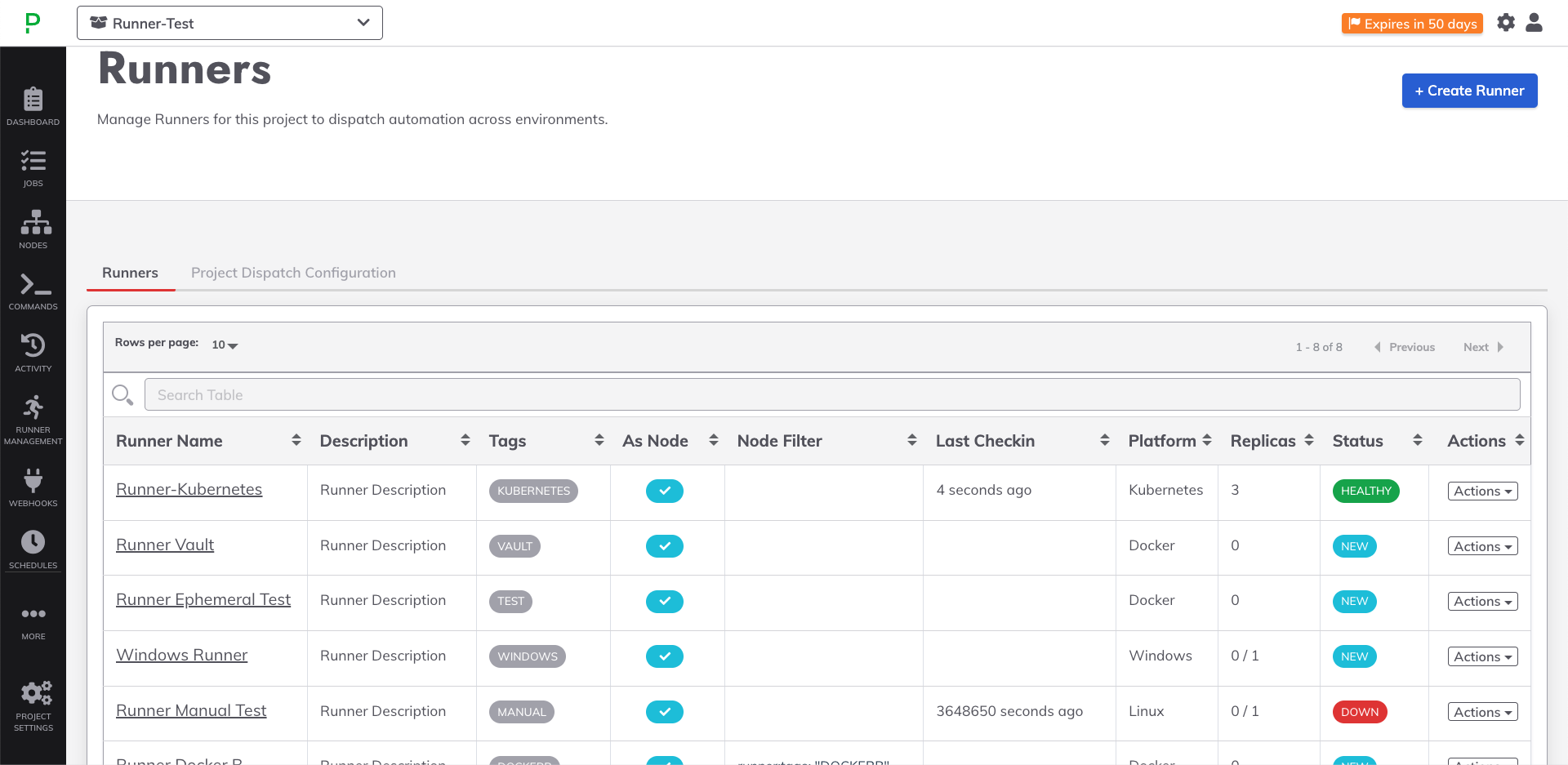

9. The new Runner will be listed along with any other Runners that have been created within the project.

Permissions

To create a Runner within a Project, users will need the following ACL permissions:

by:
  group: my-user-group-name
description: Allow "write" for runner feature within specific project
for:
  resource:
  - allow:
    - admin
    equals:
      kind: runner
context:
  project: my-project-name

---
by:
  group: my-user-group-name
description: Allow [create, read] for runners within specific project
for:
  runner:
  - allow:
    - create
    - read
context:
  project: my-project-name
---
by:
  group: runneradmin
description: Allow creation of apitokens (general)
for:
  apitoken:
  - allow:
    - create
context:
  application: rundeck
---
by:
  group: runneradmin
description: Restrict apitoken creation to only generate_service_token to be used for Runners
for:
  resource:
  - allow:
    - generate_service_token
    equals:
      kind: apitoken
context:
  application: rundeck
